NAT with route-based IPsec when local and remote subnets are the same
You can configure Network Address Translation (NAT) for route-based IPsec VPN tunnels when the subnets are the same in the local and remote firewalls.
The configuration differs for the two types of route-based VPN tunnels as follows:
- For any-to-any subnets: You must configure SNAT and DNAT rules.
- With traffic selectors: You must configure the NAT settings on Site-to-site VPN > IPsec connections. See NAT with policy-based IPsec when local and remote subnets are the same.
This article shows an example configuration for tunnel interfaces with any-to-any subnets.
- Configure the following:
- IPsec connection
- Inbound and outbound firewall rules
- SD-WAN route
- Do as follows in the head office and branch office firewalls:
- Configure a DNAT rule with a reflexive (SNAT) rule.
- Review the SNAT rule.
Head office firewall
Configure DNAT and SNAT rules in the head office firewall (Sophos Firewall 1).
Configure a DNAT rule
Add a DNAT rule to translate incoming traffic that arrives at the NAT IP range to the local subnet's IP range.
- Go to Rules and policies > NAT rules.
- Click Add NAT rule and click New NAT rule.
- Enter the rule name.

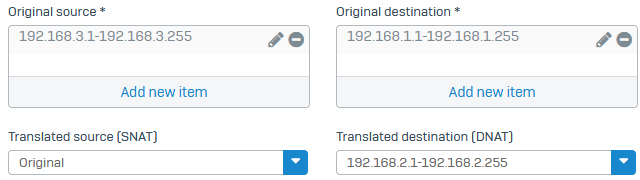

- Set Original source to the branch office NAT range object (example:
192.168.3.1 to 192.168.3.255). - Set Translated source to Original.
- Set Original destination to the IP range object you created for the translation (example:
192.168.1.1 to 192.168.1.255). - Set Translated destination to the actual local subnet object (example:
192.168.2.1 to 192.168.2.255).

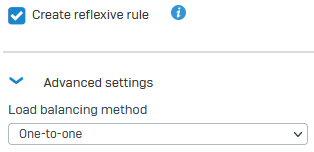

- Select Create reflexive rule to create a corresponding SNAT rule for outgoing traffic.
- For Load balancing method, select One-to-one.
- Click Save.
Review the SNAT rule
Check the SNAT rule for outgoing traffic to translate the local subnet's IP range to the object you created for translation.
- Go to Rules and policies > NAT rules.
- Click the reflexive rule you've created.
Example:
Reflexive_NAT#_<DNAT rulename> - Review the source translation settings. The example settings are as follows:
- Original source:
192.168.2.1 to 192.168.2.255 - Translated source:
192.168.1.1 to 192.168.1.255 - Original destination:
192.168.3.1 to 192.168.3.255 - Translated destination: Original
Outgoing traffic is translated from the subnet's actual IP range to the translated IP range.
- Original source:
Branch office firewall
Configure DNAT and SNAT rules in the branch office firewall (Sophos Firewall 2).
Configure a DNAT rule
Add a DNAT rule to translate incoming traffic that arrives at the NAT IP range to the local subnet's IP range.
- Go to Rules and policies > NAT rules.
- Click Add NAT rule and click New NAT rule.
- Enter the rule name.

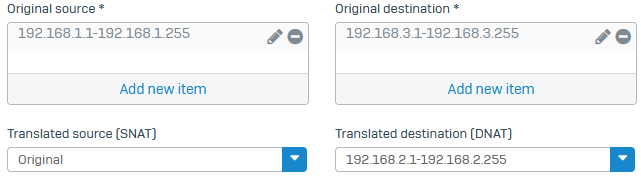

- Set Original source to the head office NAT range object (example:
192.168.1.1 to 192.168.1.255). - Set Translated source to Original.
- Set Original destination to the IP range object you created for the translation (example:
192.168.3.1 to 192.168.3.255). - Set Translated destination to the actual local subnet object (example:
192.168.2.1 to 192.168.2.255).
- Select Create reflexive rule to create a corresponding SNAT rule for outgoing traffic.
- For Load balancing method, select One-to-one.
- Click Save.
Review the SNAT rule
Check the SNAT rule for outgoing traffic to translate the local subnet's IP range to the object you created for translation.
- Go to Rules and policies > NAT rules.
- Click the reflexive rule you've created.
Example:
Reflexive_NAT#_<DNAT rulename> - Review the source translation settings. The example settings are as follows:

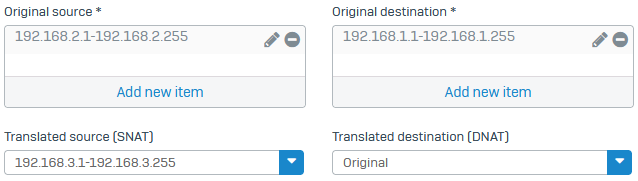

- Original source:
192.168.2.1 to 192.168.2.255 - Translated source:
192.168.3.1 to 192.168.3.255 - Original destination:
192.168.1.1 to 192.168.1.255 - Translated destination: Original
Outgoing traffic is translated from the subnet's actual IP range to the translated IP range.
- Original source:
